Cabinet internal assembly

Name: Cabinet internal assembly
SKU: Cabinet-internal-assembly_398
Availability: InStock

£0.56 – £32.67

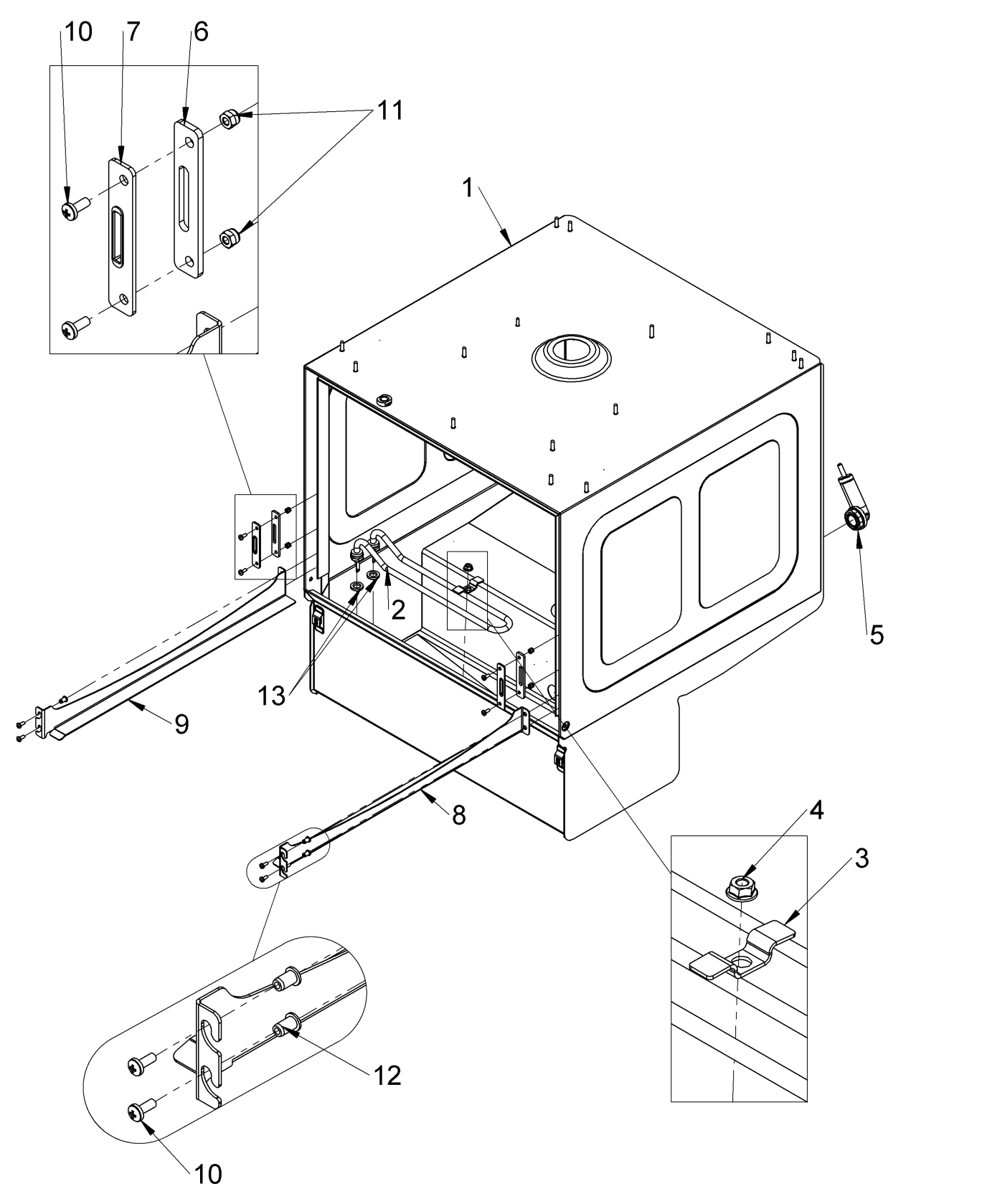

1	Not available as a spare Part No. n/a 500mm Wash cabinet assembly	Not available as a spare quantity	£0.00 Exc. VAT
2	2kW Wash element Part No. 30000975	2kW Wash element quantity	£77.87 Exc. VAT
3	Wash Element Retaining Bracket Part No. 30006126	Wash Element Retaining Bracket quantity	£8.65 Exc. VAT
4	M6 nut – Flange Part No. 30001848	M6 nut – Flange quantity	£0.29 Exc. VAT
5	Air chamber assembly kit Part No. 60003525	Air chamber assembly kit quantity	£32.67 Exc. VAT
6	Plate - Door stop Part No. 30001062	Plate - Door stop quantity	£2.76 Exc. VAT
7	Plastic Door Inlay Part No. 30001061	Plastic Door Inlay quantity	£1.39 Exc. VAT
8	500 RH Basket ramp Part No. 60005321	500 RH Basket ramp quantity	£23.74 Exc. VAT
9	500 LH Basket ramp Part No. 60005322	500 LH Basket ramp quantity	£23.74 Exc. VAT
10	M4 x 10mm long - Pan head screw Part No. 30006293	M4 x 10mm long - Pan head screw quantity	£0.35 Exc. VAT
11	M4 Nylock nut (ISO 7040) Part No. 30001172	M4 Nylock nut (ISO 7040) quantity	£0.56 Exc. VAT
12	Round nutserts Part No. 30001075	Round nutserts quantity	£1.72 Exc. VAT
13	Wash Element Fibre Washer 19mm x 3mm Part No. 30014272	Wash Element Fibre Washer 19mm x 3mm quantity	£0.32 Exc. VAT

Specifications

Brand	Classeq
